Home All Breakout Pages Sharp LMV Basic Parts 42″ and 50″ Breakout Page

Sharp LMV Basic Parts 42″ and 50″

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.

This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, and the part number, or if the part is obsolete.

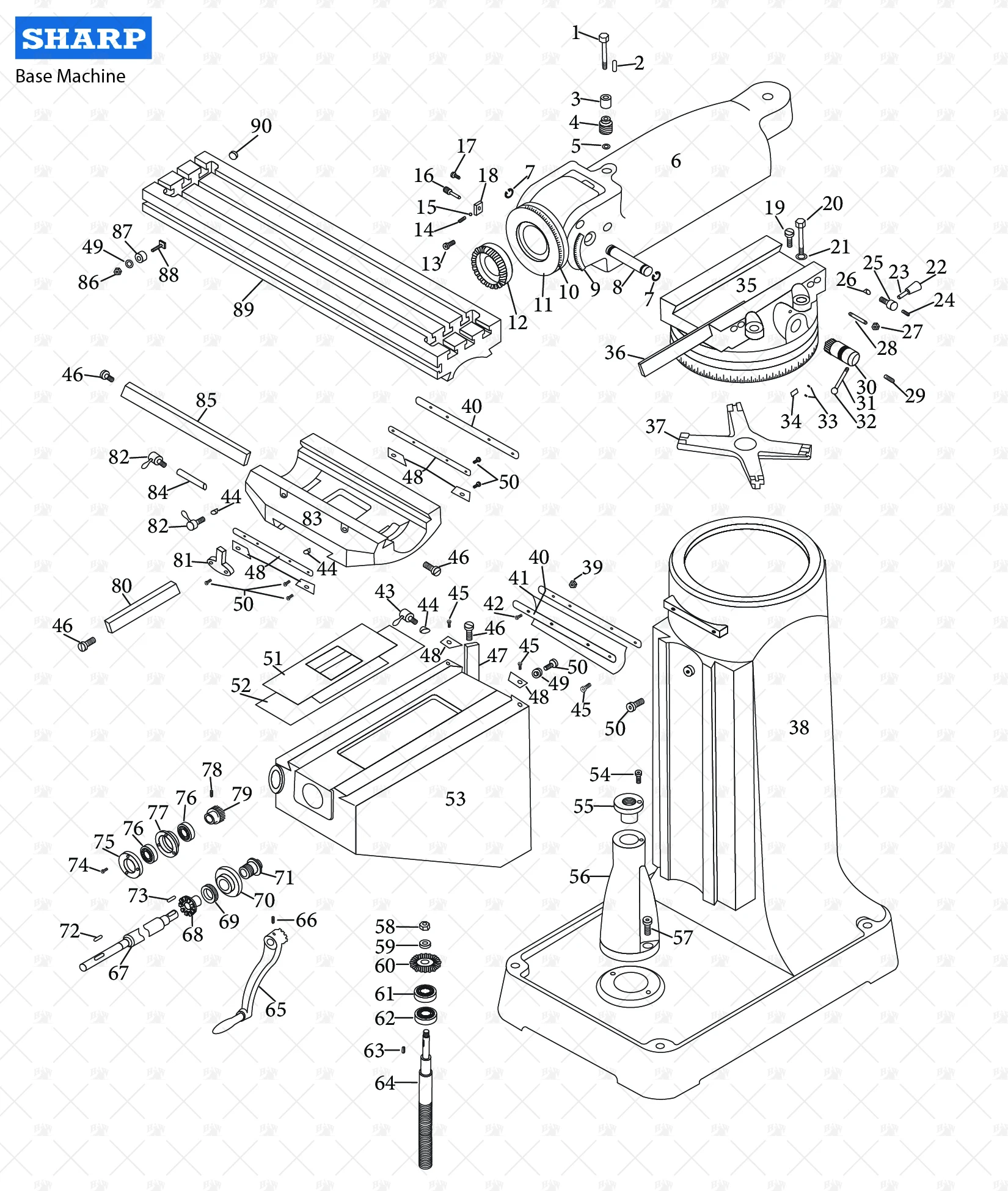

Sharp LMV Base 42″ and 50″

Sharp LMV Base 42″ and 50″
Sharp Vertical Adjusting Worm | TM-C226A Sharp Vertical Adjusting Worm | TM-C226A Sharp Vertical Adjusting Worm | TM-C226A Sharp Vertical Adjusting Worm | TM-C226A Sharp Worm Thrust Washer | TM-C232 Sharp Ram | TM-C224 5-27 Snap Ring Sharp Adapter Pivot Stud | TM-C228 Sharp Scale | TM-C236 Sharp Scale | TM-C223 Sharp Ram Adapter | TM-C225 Sharp Gear | TM-H144 M8x20 Screw 5/16x5/16 Set Screw 3/16" Steel Ball Sharp Head Rotation Stop Pin | TM-C219 3/16"x1/2" Screw Sharp Stop Pin Base | TM-C220 Sharp Ram Pinion Screw | TM-C238 Sharp Turret C Clamp Bolt | TM-C270 Sharp Washer | 1200 Sharp Knob | 2G-H033 Sharp Ram Lock Bolt Handle | TM-C233 1/4"x5/16" Set Screw Sharp Ram Lock Bolt | TM-C230 Sharp Table Lock Plunger | TM-C120 M10 Hex Head Nut Sharp Adjusting Bolt Gib | TM-C234 5/16"x3/8" Set Screw Sharp Ram Pinion | TM-C231 Sharp Ram Pinion Handle | TM-C237 Sharp Plastic Ball | TM-H333 02x5 Rivet Sharp Plate | TM-C272 Sharp Turret | TM-C254 Sharp Turret Gib | TM-C085 Sharp Spider | TM-C256 Sharp Column | TM-C271 M3x0.5 Nut Sharp Rear Chip Cover Assembly | TM-C278+C277 Sharp Rear Chip Cover Assembly | TM-C278+C277 M3x0.5 Screw Sharp Knee Lock | Q-221K Sharp Plunger | TM-C120 3/16x3/8 Screw Sharp Gib Screw | 30A-070B Knee-Column Gib Sharp Wiper Set | TM-8190 3/8 Washer 3/8x3/4 Screw Sharp Upper Chip Guard | TM-C269 Sharp Lower Chip Guard | TM-C268 Sharp Knee | TM-C050 1/4x1 Screw Sharp Elevating Nut | TM-C003 Sharp Elevating Screw Housing | TM-C002 M10x30 Screw 1/2 Nut Sharp Washer | TM-C057 Sharp Bevel Gear | TM-C059 Sharp Bearing | 1546-02 Sharp Bearing | TM-C053 | 51305 5x5x15 Key Sharp Elevating Screw | TM-C051 Sharp Elevating Handle | TM-C028 5/16x1/2 Set Screw Sharp Gear Shaft Clutch Insert | TM-C070 Sharp Dial Holder and Lock Nut | TM-C068+C069 4x4x14 Key 4x4x20 Key 1/4x3/4 Screw Sharp Bearing Cup | TM-C064 M6 Set Screw Sharp Bevel Pinion | TM-C060 Sharp Saddle-Knee Gib | TM-C131 Sharp Table Stop Bracket | TM-C123 Sharp Table Lock Bolt | TM-C121+C122 Sharp Long Plunger | TM-C132 Sharp Saddle/Table Gib | TM-C119 3/8" Hex Nut | 1205 Table Stop Piece | 1204 Sharp Table | TM-C114 PT 1/2-14 Plug 5-27 Snap Ring 3/8x3/4 Screw 3/8x3/4 Screw 3/8x3/4 Screw 3/16x3/8 Screw 3/16x3/8 Screw Sharp Gib Screw | 30A-070B Sharp Gib Screw | 30A-070B Sharp Gib Screw | 30A-070B Sharp Wiper Set | TM-8190 Sharp Wiper Set | TM-8190 Sharp Wiper Set | TM-8190 Sharp Table Lock Plunger | TM-C120 Sharp Table Lock Plunger | TM-C120 Sharp Rear Chip Cover Assembly | TM-C278+C277 3/8 Washer Sharp Table Lock Bolt | TM-C121+C122 Stop Piece T-Bolt | 1203 Sharp Saddle Sharp Gear Shaft for Knee | TM-C063 Dial w/ 100 Graduations | 1231 Sharp Dial Holder and Locknut | TM-C068+069 Bearing Retainer Ring | 1172 Bearing | 7008 Bearing | 7008

Sharp Vertical Adjusting Worm | TM-C226A

5-27 Snap Ring

5-27 Snap Ring

M8x20 Screw

M8x20 Screw

5/16x5/16 Set Screw

5/16x5/16 Set Screw

3/16" Steel Ball

3/16" Steel Ball

3/16"x1/2" Screw

3/16"x1/2" Screw

1/4"x5/16" Set Screw

1/4"x5/16" Set Screw

M10 Hex Head Nut

M10 Hex Head Nut

5/16"x3/8" Set Screw

5/16"x3/8" Set Screw

02x5 Rivet

02x5 Rivet

M3x0.5 Nut

M3x0.5 Nut

Sharp Rear Chip Cover Assembly | TM-C278+C277

M3x0.5 Screw

M3x0.5 Screw

3/16x3/8 Screw

3/16x3/8 Screw

Knee-Column Gib

Knee-Column Gib

3/8 Washer

3/8 Washer

3/8x3/4 Screw

3/8x3/4 Screw

1/4x1 Screw

1/4x1 Screw

M10x30 Screw

M10x30 Screw

1/2 Nut

1/2 Nut

5x5x15 Key

5x5x15 Key

5/16x1/2 Set Screw

5/16x1/2 Set Screw

4x4x14 Key

4x4x14 Key

4x4x20 Key

4x4x20 Key

1/4x3/4 Screw

1/4x3/4 Screw

M6 Set Screw

M6 Set Screw

3/8" Hex Nut | 1205

3/8" Hex Nut

PT 1/2-14 Plug

PT 1/2-14 Plug

5-27 Snap Ring

5-27 Snap Ring

3/8x3/4 Screw

3/8x3/4 Screw

3/8x3/4 Screw

3/8x3/4 Screw

3/8x3/4 Screw

3/8x3/4 Screw

3/16x3/8 Screw

3/16x3/8 Screw

3/16x3/8 Screw

3/16x3/8 Screw

3/8 Washer

3/8 Washer

Sharp Saddle

Not Available

Parts Breakdown

Number Part Number Part Name Part Link
1 TM-C226A Sharp Vertical Adjusting Worm Sharp Vertical Adjusting Worm | TM-C226A
2 TM-C226A Sharp Vertical Adjusting Worm Sharp Vertical Adjusting Worm | TM-C226A
3 TM-C226A Sharp Vertical Adjusting Worm Sharp Vertical Adjusting Worm | TM-C226A
4 TM-C226A Sharp Vertical Adjusting Worm Sharp Vertical Adjusting Worm | TM-C226A
5 TM-C232 Sharp Worm Thrust Washer Sharp Worm Thrust Washer | TM-C232
6 TM-C224 Sharp Ram Sharp Ram | TM-C224
7 5-27 Snap Ring 5-27 Snap Ring Sharp LMV Basic Parts 42″ and 50″ Breakout Page
8 TM-C228 Sharp Adapter Pivot Stud Sharp Adapter Pivot Stud | TM-C228
9 TM-C236 Sharp Turret Scale with Rivets Sharp Turret Scale with Rivets | TM-C236
10 TM-C223 Sharp 90 Degree Scale Sharp 90 Degree Scale | TM-C223
11 TM-C225 Sharp Ram Adapter Sharp Ram Adapter | TM-C225
12 TM-H144 Sharp Horizontal Adjusting Worm Gear Sharp Horizontal Adjusting Worm Gear | TM-H144
13 M8x20 Screw M8x20 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
14 5/16x5/16 Set Screw 5/16x5/16 Set Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
15 3/16" Steel Ball 3/16" Steel Ball Sharp LMV Basic Parts 42″ and 50″ Breakout Page
16 TM-C219 Sharp Head Rotation Stop Pin Sharp Head Rotation Stop Pin | TM-C219
17 3/16"x1/2" Screw 3/16"x1/2" Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
18 TM-C220 Sharp Stop Pin Base Sharp Stop Pin Base | TM-C220
19 TM-C238 Sharp Ram Pinion Screw Sharp Stop Pin Base | TM-C220
20 TM-C270 Sharp Turret C Clamp Bolt Sharp Ram Pinion Screw | TM-C238
21 1200 Bridgeport Washer Bridgeport Washer | 1200
22 2G-H033 Sharp Knob Sharp Knob | 2G-H033
23 TM-C233 Sharp Ram Lock Bolt Handle Sharp Ram Lock Bolt Handle | TM-C233
24 1/4"x5/16" Set Screw 1/4"x5/16" Set Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
25 TM-C230 Sharp Ram Lock Bolt Sharp Ram Lock Bolt | TM-C230
26 TM-C120 Sharp Table Lock Plunger Sharp Table Lock Plunger | TM-C120
27 M10 Hex Head Nut M10 Hex Head Nut Sharp LMV Basic Parts 42″ and 50″ Breakout Page
28 TM-C234 Sharp Adjusting Bolt Gib Sharp Adjusting Bolt Gib | TM-C234
29 5/16"x3/8" Set Screw 5/16"x3/8" Set Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
30 TM-C231 Sharp Ram Pinion Sharp Ram Pinion | TM-C231
31 TM-C237 Sharp Ram Pinion Handle Sharp Ram Pinion Handle | TM-C237
32 TM-H333 Sharp Plastic Ball Knob Sharp Plastic Ball Knob | TM-H333
33 02x5 Rivet 02x5 Rivet Sharp LMV Basic Parts 42″ and 50″ Breakout Page
34 TM-C272 Sharp Plate Sharp LMV Basic Parts 42″ and 50″ Breakout Page
35 TM-C254 Sharp Turret Sharp Turret | TM-C254
36 TM-C085 Sharp Turret Gib Sharp Turret Gib | TM-C085
37 TM-C256 Sharp Spider Sharp Spider | TM-C256
38 TM-C271 Sharp Column Sharp Spider | TM-C256
39 M3x0.5 Nut M3x0.5 Nut Sharp LMV Basic Parts 42″ and 50″ Breakout Page
40 TM-C278+C277 Sharp Rear Chip Cover Assembly Sharp Rear Chip Cover Assembly | TM-C278+C277
41 TM-C278+C277 Sharp Rear Chip Cover Assembly Sharp Rear Chip Cover Assembly | TM-C278+C277
42 M3x0.5 Screw M3x0.5 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
43 Q-221K Sharp Knee Lock Sharp Knee Lock | Q-221K
44 TM-C120 Sharp Table Lock Plunger Sharp Table Lock Plunger | TM-C120
45 3/16x3/8 Screw 3/16x3/8 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
46 30A-070B Sharp Gib Screw Sharp Gib Screw | 30A-070B
47 Knee-Column Gib Knee-Column Gib Sharp LMV Basic Parts 42″ and 50″ Breakout Page
48 TM-8190 Sharp Wiper Set Sharp Wiper Set | TM-8190
49 3/8 Washer 3/8 Washer Sharp LMV Basic Parts 42″ and 50″ Breakout Page
50 3/8x3/4 Screw 3/8x3/4 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
51 TM-C269 Sharp Upper Chip Guard Sharp Upper Chip Guard | TM-C269
52 TM-C268 Sharp Lower Chip Guard Sharp Lower Chip Guard | TM-C268
53 TM-C050 Sharp Knee Sharp Knee | TM-C050
54 1/4x1 Screw 1/4x1 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
55 TM-C003 Sharp Elevating Nut Sharp Elevating Nut | TM-C003
56 Sharp Elevating Screw Housing
 Sharp Elevating Screw Housing
 Basic Machine (Base) Breakout Page
57 M10x30 Screw M10x30 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
58 1/2 Nut 1/2 Nut Sharp LMV Basic Parts 42″ and 50″ Breakout Page
59 TM-C057 Sharp Washer Sharp Washer | TM-C057
60 TM-C059 Sharp Bevel Gear Sharp Bevel Gear | TM-C059
61 1546-02 Bridgeport Bottom Motor Bearing 1 – 1/2 HP Bridgeport Bottom Motor Bearing 1 – 1/2 HP | 1546-02
62 TM-C053 Sharp Bearing Sharp Bearing | TM-C053 | 51305
63 5x5x15 Key 5x5x15 Key Sharp LMV Basic Parts 42″ and 50″ Breakout Page
64 TM-C051 Sharp Elevating Screw Sharp Elevating Screw | TM-C051
65 TM-C028 Sharp Elevating Handle Sharp Elevating Handle | TM-C028
66 5/16x1/2 Set Screw 5/16x1/2 Set Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
67 TM-C063 Sharp Gear Shaft for Knee Sharp Gear Shaft for Knee | TM-C063
68 TM-C070 Sharp Gear Shaft Clutch Insert Sharp Gear Shaft Clutch Insert | TM-C070
69 TM-C068+C069 Sharp Dial Holder and Lock Nut Sharp Dial Holder and Lock Nut | TM-C068+C069
70 1231 Bridgeport Dial with100 Graduations Bridgeport Dial with100 Graduations | 1231
71 TM-C068+C069 Sharp Dial Holder and Lock Nut Sharp Dial Holder and Lock Nut | TM-C068+C069
72 4x4x14 Key 4x4x14 Key Sharp LMV Basic Parts 42″ and 50″ Breakout Page
73 4x4x20 Key 4x4x20 Key Sharp LMV Basic Parts 42″ and 50″ Breakout Page
74 1/4x3/4 Screw 1/4x3/4 Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
75 1172 Bridgeport Bearing Retainer Ring Bridgeport Bearing Retainer Ring | 1172
76 7008 Bearing Bearing | 7008
77 TM-C064 Sharp Bearing Cup Sharp Bearing Cup | TM-C064
78 M6 Set Screw M6 Set Screw Sharp LMV Basic Parts 42″ and 50″ Breakout Page
79 TM-C060 Sharp Bevel Pinion Sharp Bevel Pinion | TM-C060
80 TM-C131 Sharp Saddle-Knee Gib Sharp Saddle-Knee Gib | TM-C131
81 TM-C123 Sharp Table Stop Bracket Sharp Table Stop Bracket | TM-C123
82 TM-C121+C122
 Sharp Table Lock Bolt Sharp Table Lock Bolt | TM-C121+C122
83 Sharp LMV Base 42″ and 50″ Sharp LMV Base 42″ and 50″ Sharp LMV Basic Parts 42″ and 50″ Breakout Page
84 TM-C132 Sharp Long Plunger Sharp Long Plunger | TM-C132
85 TM-C119 Sharp Saddle/Table Gib Sharp Saddle/Table Gib | TM-C119
86 1205 3/8" Hex Nut Bridgeport Hex Nut | 1205
87 1204 Bridgeport Table Lock Piece Bridgeport Table Lock Piece | 1204
88 1203 Bridgeport Stop Piece T-Bolt Bridgeport Stop Piece T-Bolt | 1203
89 TM-C114 Sharp Table Sharp Table | TM-C114
90 PT 1/2-14 Plug PT 1/2-14 Plug Sharp LMV Basic Parts 42″ and 50″ Breakout Page
