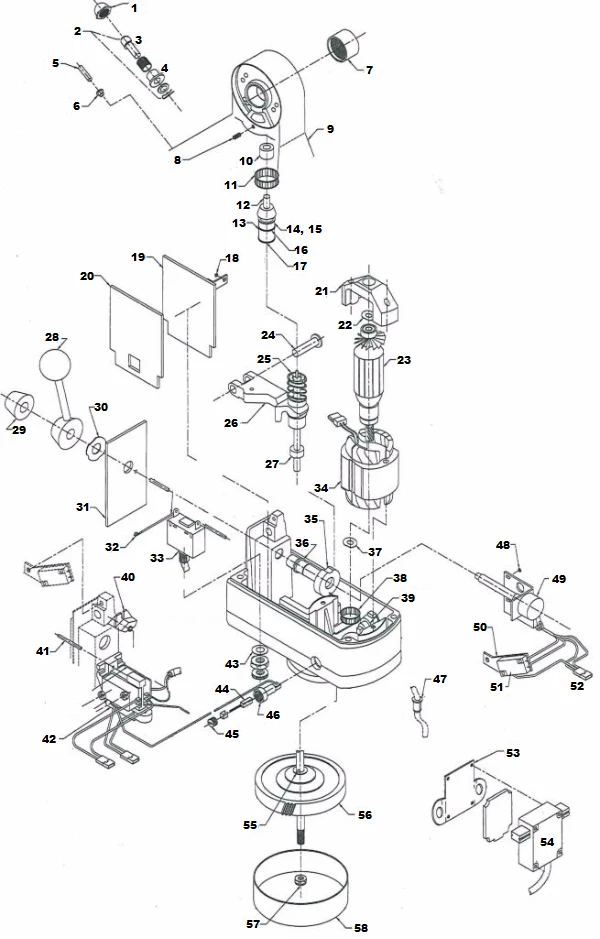

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 2499 | Servo Hex Seal Boot | Servo Hex Seal Boot | 2499 |
| 2 | 5882 | Servo Rapid Switch Assembly | Servo Rapid Switch Assembly | 5882 |
| 3 | 4883 | Servo Rapid Switch Plunger | Servo Rapid Switch Plunger | 4883 |
| 4 | 4884 | Servo Rapid Switch Housing | Servo Rapid Switch Housing | 4884 |
| 5 | 5064 | Servo Light Transmitter | Servo Light Transmitter | 5064 |
| 6 | 03103 | Servo Pilot Light Mounting Grommet | Servo Pilot Light Mounting Grommet | 03103 |
| 7 | 00650 | Servo Needle Bearing | Servo Needle Bearing | 00650 |
| 8 | 03114 | Servo Nylon Screw | Servo Nylon Screw | 03114 |
| 9 | 4854-14 | Servo Top Housing | Servo Top Housing | 4854-14 |
| 10 | 00502 | Servo Needle Bearing | Servo Needle Bearing | 00502 |
| 11 | 00982 | Servo Tolerance Ring | Servo Tolerance Ring | 00982 |
| 12 | 3509 | Servo Drive Shaft Assembly | Servo Drive Shaft Assembly | 3509 |
| 13 | 1364 | Servo Upper Drive Shaft Spacer | Servo Upper Drive Shaft Spacer | 1364 |
| 14 | 04241 | Servo Drip Seal Wick | Servo Drip Seal Wick | 04241 |
| 15 | 04242 | Servo Felt Wick | Servo Felt Wick | 04242 |
| 16 | 00984 | Servo Tetra Seal | Servo Tetra Seal | 00984 |
| 17 | 00983 | Servo Tru – Arc Retaining Ring | Servo Tru – Arc Retaining Ring | 00983 |
| 18 | 00524 | Servo Lock Washer | Servo Lock Washer | 00524 |
| 19 | 5567 | Servo Type 150 Circuit Board | Servo Type 150 Circuit Board | 5567 |
| 20 | 6193 | Servo Circuit Board Insulator | Servo Circuit Board Insulator | 6193 |
| 21 | 4891 | Servo Bearing Mount | Servo Bearing Mount | 4891 |
| 22 | 555 | Servo Spring Washer | Servo Spring Washer | 555 |
| 23 | 1767-4 | Servo Armature | Servo Armature | 1767-4 |
| 24 | 04761 | Servo Rivet | Servo Rivet | 04761 |
| 25 | 5528 | Servo Lift Fork Spring | Servo Lift Fork Spring | 5528 |
| 26 | 4913 | Servo Lift Fork Assembly | Servo Lift Fork Assembly | 4913 |
| 27 | 01221 | Servo Needle Bearing | Servo Needle Bearing | 01221 |
| 28 | 4918 | Servo Control Handle Assembly | Servo Control Handle Assembly | 4918 |
| 29 | 6225 | Servo Speed Knob | Servo Speed Knob | 6225 |
| 30 | 02842 | Servo Spring Washer | Servo Spring Washer | 02842 |
| 31 | 6262 | Servo Type 150 Name Plate | Servo Type 150 Name Plate | 6262 |
| 32 | 02258 | Servo Terminal Pin (for small 4 pin connector only) | Servo Terminal Pin (for small 4 pin connector only) | 02258 |
| 33 | 04103-K | Servo Circuit Breaker 3.0 | Servo Circuit Breaker 3.0 | 04103-K |
| 34 | 1766-2 | Servo Type 150 Motor Field Assembly | Servo Type 150 Motor Field Assembly | 1766-2 |
| 35 | 5530-2 | Servo Cam Assembly | Servo Cam Assembly | 5530-2 |
| 36 | 5037 | Servo Cam Spacer | Servo Cam Spacer | 5037 |
| 37 | 555 | Servo Spring Washer | Servo Spring Washer | 555 |
| 38 | 00982 | Servo Tolerance Ring | Servo Tolerance Ring | 00982 |
| 39 | 5387 | Servo Insulator Brush | Servo Insulator Brush | 5387 |
| 40 | 5098 | Servo Reversing Switch | Servo Reversing Switch | 5098 |
| 41 | 4992 | Servo Switch Actuator Pin | Servo Switch Actuator Pin | 4992 |
| 42 | 5571 | Servo Type 150 Reversing Switch Assembly | Servo Type 150 Reversing Switch Assembly | 5571 |
| 43 | 04863 | Servo Rubber Switch Gasket | Servo Rubber Switch Gasket | 04863 |
| 44 | 01283 | Servo Motor Brush (Set of 2) | Servo Motor Brush (Set of 2) | 01283 |
| 45 | 00573 | Servo Brush Cap (set of 2) | Servo Brush Cap (set of 2) | 00573 |
| 46 | 01282 | Servo Brush Holder (Set of 2) | Servo Brush Holder (Set of 2) | 01282 |
| 47 | 4894 | Servo Strain Relief | Servo Strain Relief | 4894 |
| 48 | 00524 | Servo Lock Washer | Servo Lock Washer | 00524 |
| 49 | WSV28 | Servo Type 150 Potentiometer | Servo Type 150 Potentiometer | WSV28 |
| 50 | 4895 | Servo Bracket | Servo Bracket | 4895 |
| 51 | 03035 | Servo Micro Switch | Servo Micro Switch | 03035 |
| 52 | 5568 | Servo Type 150 Potentiometer Assembly | Servo Type 150 Potentiometer Assembly | 5568 |
| 53 | 0272 | Servo Limit Switch Bracket | Servo Limit Switch Bracket | 0272 |
| 54 | 2024-7 | Servo Type 150 Limit Switch | Servo Type 150 Limit Switch | 2024-7 |
| 55 | 4737 | Servo Zytel Gear Assembly | Servo Zytel Gear Assembly | 4737 |
| 56 | 4737 | Servo Zytel Gear Assembly | Servo Zytel Gear Assembly | 4737 |
| 57 | 01009 | Servo Hex Locknut | Servo Hex Locknut | 01009 |
| 58 | 2974 | Servo Bottom Cover | Servo Bottom Cover | 2974 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 0237 | Servo Brass Gear | Servo Brass Gear | 0237 |
| 150 | Servo Rebuild Kit for Servo | Servo Rebuild Kit for Servo – 150 |
| RBK-SERVO | Universal Servo Rebuild Kit (Without Circuit Board) | Universal Servo Rebuild Kit (Without Circuit Board) | RBK-SERVO |
| SERVO-SP | Servo Shim Pack for 140, 150, and 200 Servo’s | Servo Shim Pack for 140, 150, and 200 Servo’s | SERVO-SP |
