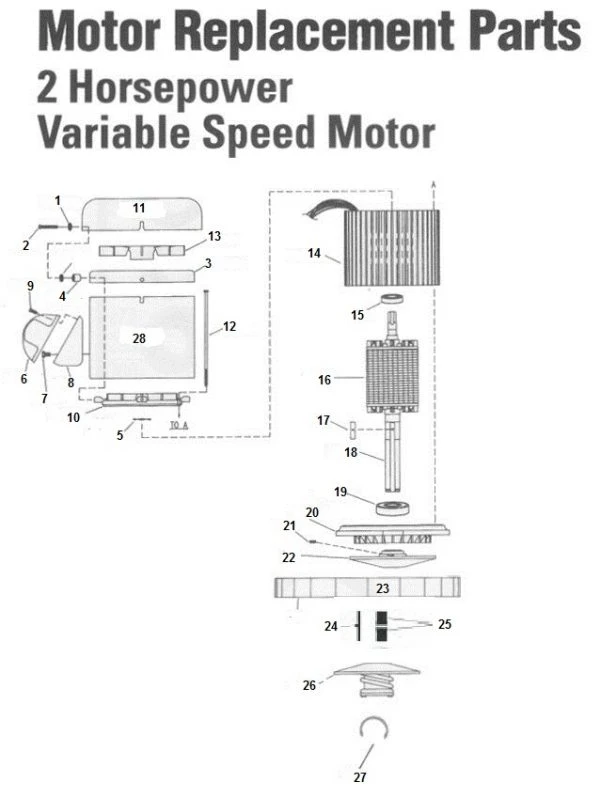

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, and the part number, or if the part is obsolete.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 014-0009 | Bridgeport Motor Spacer Washer | Bridgeport Motor Spacer Washer | 014-0009 |
| 2 | 012-0045 | Bridgeport Machine Screw | Bridgeport Machine Screw | 012-0045 |
| 3 | 037-0013 | Bridgeport Air Deflector | Bridgeport Air Deflector | 037-0013 |
| 4 | 037-0010 | Bridgeport Spacer | Bridgeport Spacer | 037-0010 |
| 5 | 019-0030 | Bridgeport Wave Spring Washer | Bridgeport Wave Spring Washer | 019-0030 |
| 6 | Bridgeport Outlet Box Base/Cover | Bridgeport Outlet Box Base/Cover | Bridgeport Outlet Box Base/Cover | 037-0004 |
| 7 | 012-0043 | Bridgeport Outlet Base Bolt | Bridgeport Outlet Base Bolt | 012-0043 |
| 8 | 037-0004 | Bridgeport Outlet Box Base/Cover | Bridgeport Outlet Box Base/Cover | 037-0004 |
| 9 | 012-0044 | Bridgeport Screw | Bridgeport Screw | 012-0044 |
| 10 | 037-0015 | Bridgeport Top Bearing Plate | Bridgeport Top Bearing Plate | 037-0015 |
| 11 | 037-0014 | Bridgeport Fan Cover | Bridgeport Fan Cover | 037-0014 |
| 12 | 012-0049 | Bridgeport Motor Bolt | Bridgeport Motor Bolt | 012-0049 |
| 13 | 1546-05 | Bridgeport Vent Fan | Bridgeport Vent Fan | 1546-05 |
| 14 | 037-0009 | Bridgeport Stator Assembly | Bridgeport Stator Assembly | 037-0009 |
| 15 | 1277 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1277 |
| 16 | 1547-08 and 1546-08 | Bridgeport Motor Shaft Rotor Assembly | Bridgeport Motor Shaft Rotor Assembly | 1547-08 and 1546-08 |
| 17 | 1597 and 1568 | Bridgeport Stationary Motor Pulley Key | Bridgeport Stationary Motor Pulley Key | 1597 and 1568 |
| 18 | 1547-01 | Bridgeport 2hp Motor Shaft | Bridgeport 2hp Motor Shaft | 1547-01 |
| 19 | 1547-02 | Bridgeport Bearing | Bridgeport Bearing | 1547-02 |
| 20 | 037-0016 | Bridgeport Bottom Bearing Plate | Bridgeport Bottom Bearing Plate | 037-0016 |
| 21 | 1307 | Bridgeport Socket Set Screw | Bridgeport 2HP Motor(New) Assembly 1550001-A |
| 22 | 1598 and 1569 | Bridgeport Stationary Motor Vari – Disc | Bridgeport Stationary Motor Vari – Disc | 1598 and 1569 |
| 23 | 1105 | Bridgeport Variable Speed Drive Belt | Bridgeport Variable Speed Drive Belt | 1105 |
| 24 | 1035-A and 1035-B | Bridgeport Plastic Key, Motor Side | Bridgeport Plastic Key, Motor Side | 1035-A and 1035-B |
| 25 | 1114 and 1113 | Bridgeport Motor Vari – Disc Plastic Insert Bushing (Set of 2) | Bridgeport Motor Vari – Disc Plastic Insert Bushing (Set of 2) | 1114 and 1113 |
| 26 | 1036 and 1037 | Bridgeport Adjustable Motor Vari – Disc Assembly | Bridgeport Adjustable Motor Vari – Disc Assembly | 1036 and 1037 |
| 27 | 1599 and 1571 | Bridgeport Retaining Ring | Bridgeport Retaining Ring | 1599 and 1571 |
| 28 | 037-0012 | Bridgeport Series II Cowl (Obsolete) | Bridgeport Series II Cowl (Obsolete)| 037-0012 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 1547 | Bridgeport Rebuilt 2HP Motor | Bridgeport Rebuilt 2HP Motor | 1547 |
| 1550001 | Bridgeport 2hp Motor (New) | Bridgeport 2hp Motor (New) | 1550001 |
| 6035 | Bridgeport Motor Warning Sticker | Bridgeport Motor Warning Sticker | 6035 |
| 6040 | Bridgeport Motor Data Sticker | Bridgeport Motor Data Sticker | 6040 |
| 2X441 | Dayton Drum Switch | Dayton Drum Switch | 2X441 |
| 043-0042 | OC Controls Drum Switch | OC Controls Drum Switch | 043-0042 |
| 11598117 | Bridgeport OEM Drum Switch | Bridgeport OEM Drum Switch | 11598117 |
| BRM-2J | Guide to Renovating the Bridgeport “2J” Head Machine | Guide to Renovating the Bridgeport “2J” Head Machine | BRM-2J |
| Speed – Rite AC Variable Frequency Drive Package – 3HP | Speed – Rite AC Variable Frequency Drive Package – 3HP | Speed – Rite AC Variable Frequency Drive Package – 3HP |
